Single Mode 12fO ASU80 Optic Fiber Cable 80m For Span

Product Categories
Shenzhen Knofc Communication Co., Ltd.
Contact Now

Single Mode 12fO ASU80 Optic Fiber Cable 80m For Span

  • 1
  • 2

Brand Name : KNOFC

Model Number : ASU80 12 FO

Certification : ISO9001/CE

Place of Origin : China

MOQ : 1km

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200000M/Week

Delivery Time : 8-10 working days

Packaging Details : Wooden drum

Fiber type : G652D or as your request

Fiber brand : YOFC / Fiberhome / Corning / KNOFC

Fiber count : 2-24 core

Strength member : 2*FRP

Protective layer : Water blocking tape

Outer sheath material : HDPE

Application : Aerial / Duct

Life expectancy : more than 30 years

Operating Temperature : -40°C to+70°C

Contact Now

Singel Mode Cabo Fibra Optica 12 FO ASU80 Fiber Optic Cable For Span 80m

Description:

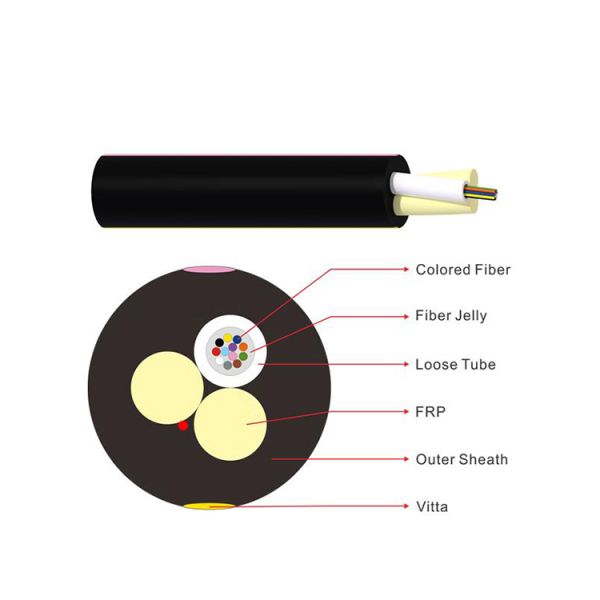

The optical fiber is put in a loose tube.The fiber can be 1-24 cores in the tube. Tube filling compound will be used for as water blocking elements. FRP are put together for the tensile strength purpose. This is economic and compact design for replace GYFTY in SZ stranded design. The cable is finished with PE or LSZH jacket. This cable has the fetures of small size and light weight. It help to save the shipping cost. Applicable for short span aerial and duct installation.

Characteristics:

· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· PE/LSZH sheath protects cable from ultraviolet radiation.
· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Light weight and small size convenient to laying.

Application:

1. Adopted to outdoor distribution.
2. Suitable for aerial, pipeline laying method.
3. Long distance and local area network communication.

Optical Fiber Characteristic:

G.652.D G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Cable Mechanical characteristic:

Cable type Diameter (mm) Weight (kg/km) Tensile strength
Long/short term (N)		 Crush Resistance Long/Short Term(N/100mm) Bending radius
Dynamic/static (mm)		 Storage temperature ( ℃ )
ASU80-2~24 8 70 600/1500 300/1000 20D/10D -20~+70
